Problem: When a single element changes on the UI Canvas, it dirties the whole Canvas.
The Canvas is the basic component of Unity UI. It generates meshes that represent the UI Elements placed on it, regenerates the meshes when UI Elements change, and issues draw calls to the GPU so that the UI is actually displayed.
Generating these meshes can be expensive. UI Elements need to be collected into batches so that they’re drawn in as few draw calls as possible. Because batch generation is expensive, we only want to regenerate them when necessary. The issue is that, when one or more elements change on a Canvas, the whole Canvas has to be analyzed once again, to figure out how to optimally draw its elements.
Many users build their entire game’s UI on a single Canvas with thousands of elements. When they change one element, they can experience a CPU spike costing multiple milliseconds. To learn more about why rebuilding is so expensive, go to the 24:55 mark in this Unite session.
Solution: Split up your Canvases.
Each Canvas is an island that isolates its elements from those of other Canvases. Take advantage of UGUI’s ability to support multiple Canvases by slicing up your Canvases to solve the batching problems with Unity UI.
You can also nest Canvases, which allows designers to create large hierarchical UIs, without having to think about where different elements are onscreen across Canvases. Child Canvases also isolate content from both their parent and sibling Canvases. They maintain their own geometry and perform their own batching. One way to decide how to split them up is based on how frequently they need to be refreshed. Keep static UI Elements on a separate Canvas, and dynamic Elements that update at the same time on smaller sub-Canvases. Also, ensure that all UI Elements on each Canvas have the same Z value, materials, and textures.
Problem: Inadequate use of the Graphic Raycaster
The Graphic Raycaster is the component that translates your input into UI Events. More specifically, it translates screen clicks or onscreen touch inputs into UI Events, and then sends them to interested UI Elements. You need a Graphic Raycaster on every Canvas that requires input, including sub-Canvases. However, it also loops through every input point onscreen and checks if they’re within a UI’s RectTransform, resulting in potential overhead.
Despite its name, the Graphic Raycaster is not really a raycaster. By default, it only tests UI graphics. It takes the set of UI Elements that are interested in receiving input on a given Canvas and performs intersection checks. For instance, it checks if the point at which the input event occurs against the RectTransform of each UI Element on the Graphic Raycaster’s Canvas is marked as interactive.
The challenge is that not all UI Elements are interested in receiving updates.

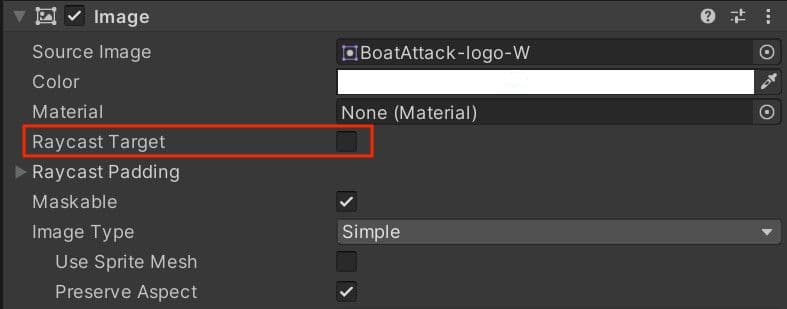

Solution: Remove Graphic Raycasters from non-interactive UI Canvases and turn off the Raycast Target for static or non-interactive elements.
In particular, text on a button turning off the Raycast Target will directly reduce the number of intersection checks that the Graphic Raycaster must perform on each frame.
Problem: Sometimes the Graphic Raycaster does act as a raycaster.
If you set the Render mode on your Canvas to Worldspace Camera or Screen Space Camera, you can add a blocking mask. The blocking mask determines whether the Raycaster will cast rays via 2D or 3D physics, to determine if some physics object is blocking the user’s ability to interact with the UI.
Solution: Casting rays via 2D or 3D physics can be expensive, so use this feature sparingly.
Minimize the number of Graphic Raycasters by excluding them from non-interactive UI Canvases, since – in this case – there is no reason to check for interaction events.
Learn more about the Graphic Raycaster in this documentation.
Problem: Large List, Grid views, and numerous overlaid UI Elements are costly.
Large List and Grid views are expensive, and layering numerous UI Elements (i.e., cards stacked in a card battle game) creates overdraw.
Solution: Avoid numerous overlaid UI Elements.
Customize your code to merge layered UI Elements at runtime into fewer Elements and batches.

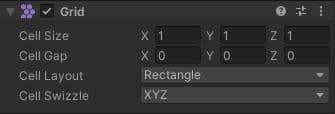

If you need to create a large List or Grid view, such as an inventory screen with hundreds of items, consider reusing a smaller pool of UI Elements rather than a single UI Element for each item.
Check out this GitHub project for an example of an optimized Scroll List.
Problem: Every UI Element that tries to dirty its layout will perform at least one GetComponent call.
When one or more child UI Element(s) change on a layout system, the layout becomes “dirty.” The changed child Element(s) invalidate the layout system that owns it.
A layout system is a set of contiguous layout groups directly above a layout element. A layout element is not just the Layout Element component (UI images, texts, and Scroll Rects), it also comprises layout elements – just as Scroll Rects are also layout groups.
Now, regarding the problem at hand: Every UI Element that marks its layout as “dirty” will perform, at minimum, one GetComponent call. This call looks for a valid layout group on the layout element’s parent. If it finds one, it continues walking up the Transform hierarchy until it stops seeking layout groups or reaches the hierarchy root; whichever comes first. As such, each layout group adds one GetComponent call to each child layout element’s dirtying process, making the nested layout groups extremely bad for performance.
Solution: Avoid layout groups when possible.
Use Anchors for proportional layouts. On hot UIs with a dynamic number of UI Elements, consider writing your own code to calculate layouts. Be sure to use this on demand, rather than for every single change.

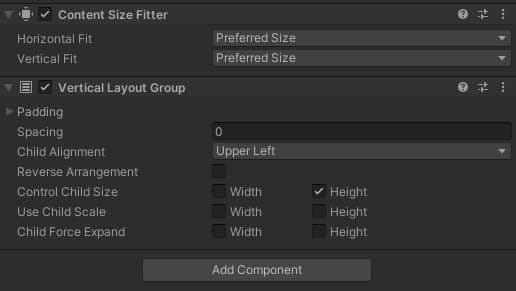

Learn more about layout groups in our documentation.
Problem: Pooling UI objects the wrong way around
People often pool UI objects by reparenting and then disabling them, which causes unnecessary dirtying.
Solution: Disable the object first, then reparent it into the pool.
You will dirty the old hierarchy once, but once you reparent it, you’ll avoid dirtying the old hierarchy a second time – and you won’t dirty the new hierarchy at all. If you’re removing an object from the pool, reparent it first, update your data, and then enable it.
Learn more about the concepts of basic Object Pooling in Unity.
Problem: Unsure how to hide a Canvas
It’s sometimes useful to hide UI Elements and Canvases. But how can you do this efficiently?
Solution: Disable the Canvas component itself.
Disabling the Canvas component will stop the Canvas from issuing draw calls to the GPU. This way, the Canvas will no longer be visible. However, the Canvas won’t discard its vertex buffer, it will keep all of its meshes and vertices. Then when you re-enable it, it won’t trigger a rebuild – it will just start drawing them again.
Additionally, disabling the Canvas component does not trigger the expensive OnDisable/OnEnable callbacks via the Canvas hierarchy. Just be careful to disable child components that run expensive per-frame code.
Learn more about the Canvas Component here.
Problem: Using animators on your UI
Animators will dirty their UI Elements on every frame, even if the value in the animation does not change.
Solution: Use code for UI Animation.
Only put animators on dynamic UI Elements that always change. For Elements that rarely change or that change temporarily in response to events, write your own code or use a tweening system. There are a number of great solutions for this available on the Asset Store.
Problem: Poor performance with fullscreen UI
If your game displays a pause or start screen that fully covers the scene, the rest of the game is still being rendered in the background, which can impact performance.
Solution: Hide everything else.
If you have a screen that covers everything else in the scene, disable the Camera rendering the 3D scene. Similarly, disable Canvas elements hidden behind the top Canvas.
Consider lowering the Application.targetFrameRate during a fullscreen UI, since you shouldn’t need to update at 60 fps.
